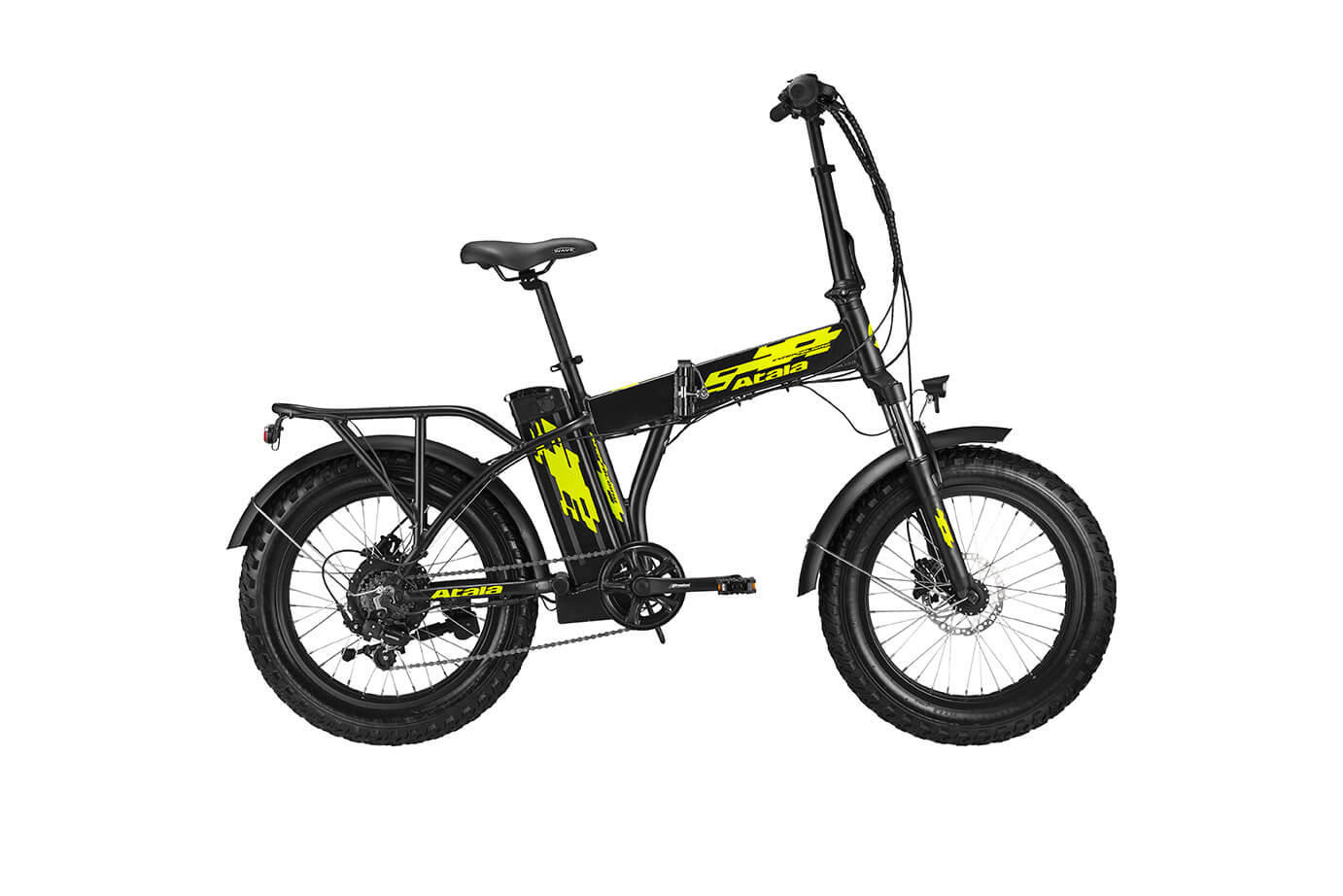

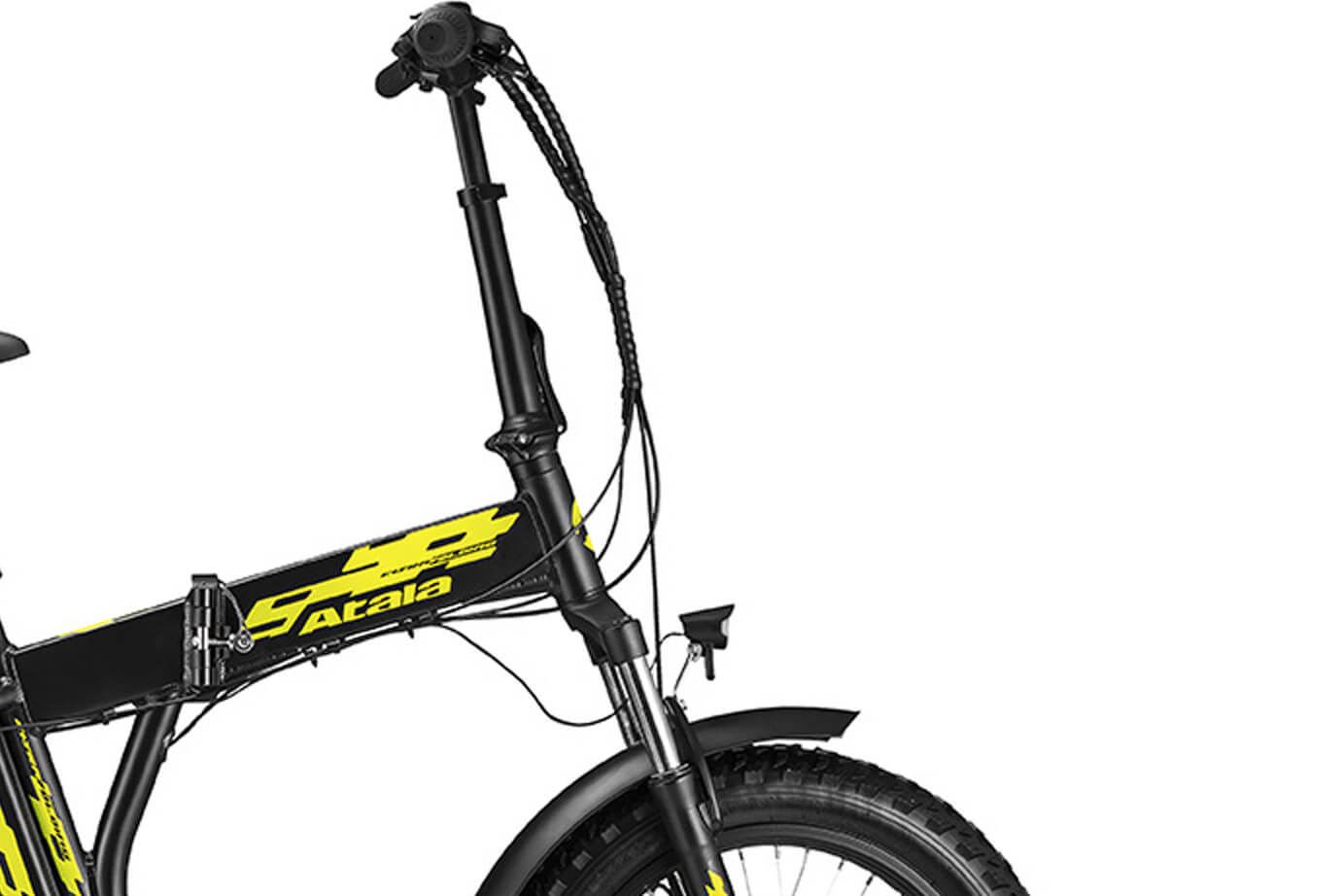

EXTRAFOLDING

System EcoLogic
EcoLogic FAT/Speed

Black/Neon Yellow Matt Neon Green/Black Matt

Telaio	Alu 20” FAT, foldable, integrated HT, disc brake
Forcella	Susp 45mm 20”x4", alu crown, whith mechanical lockout
Serie sterzo	Integrated 1”1/8, threaded
Guarnitura	Alu 170mm, 42T, cartridge
Cambio	Shimano Tourney RD-FT35D
Comandi	Hydraulic disk, Rotor 160 mm, with brake lever switch
Freni	Shimano Tourney SL-RS35 RevoShift, 7s
Ruota Libera	Shimano Tourney 7s 14-28
Pedali	Resin foldable
Mozzi	Alu 36h, axle 135 F/175 R, motor on rear
Cerchi	20" alu, double wall, 36h
Attacco manubrio	Alu, foldable, adjustable
Piega manubrio	Alu, 20mm rise
Reggisella	Alul with clamp, 27,2mm, 400mm long
Sella	Selle Royal Wave
Coperture	20”x4”
Parafanghi	Steel painted
Copricatena	Paracatena
Portapacchi	Alu integrato al telaio
Luci esterne	Spanninga front (16Lux) and rear LED, controlled by display
Taglia	43
Colore	Black/Neon Yellow Matt Neon Green/Black Matt
Note	kickstand on CS, bell, wheel reflectors

Tipo sensore	Speed sensor w/12 pulses
Batteria	522/540
Autonomia	Up to 100 km
Tipo caricabatteria	2A Europlug
Tempo di ricarica	100%: 8h34m 80%: 6h27m / 100%: 8h50m 80%: 6h40m
Velocità max assistita	25km/h
Display	LCD
Potenza	5 levels, Speed/Torque adjust
Altre funzioni	Walking Assistance External light controlSpeed information
